Weld Positioning Equipment

Below is a list of our current inventory items. It is important to keep in mind that this is only a small sampling of the Standard Equipment IRCO Automation Inc. builds. If you're interested in an item, please fill out a form below to receive the Spec Sheet or to request a Quote. If you would like information on multiple items, please specify on the form.

elbow jigs - white background - thumbnail

ELBOW JIGS: 4"-12" OPTIONS

EJ-04L90/ EJ-06L90/ EJ-08L90/ EJ-10L90/ EJ-12L90
Various Pipe Diameter sized elbow jigs available.

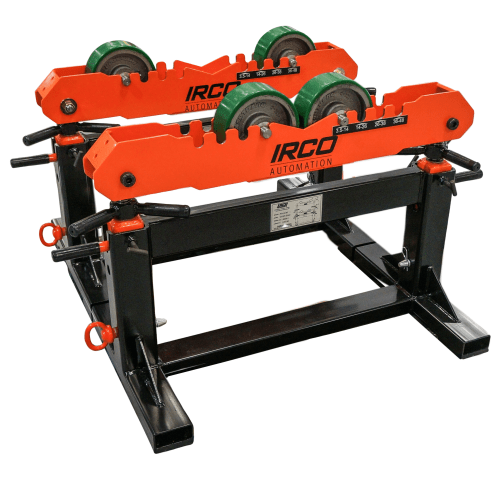

Pipestands - thumbnail

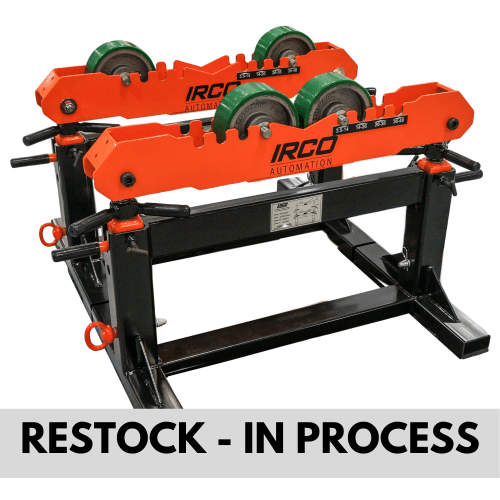

3000 LB PIPESTANDS: ADJUSTABLE BASE & 3.5"-48" DIAMETER RANGE

PS-3-RU-MF
Pipe Stand with 3000 lb load capacity, urethane wheels, nominal pinned positioned with fine adjustment

chuck - white background - thumbnail

3 JAW CHUCK: 20" OUTSIDE DIAMETER

3JC-20-RS
3 Jaw Chuck, 2"-20" clamping range, standard chuck jaws, serrated carbite inserts for contact interface

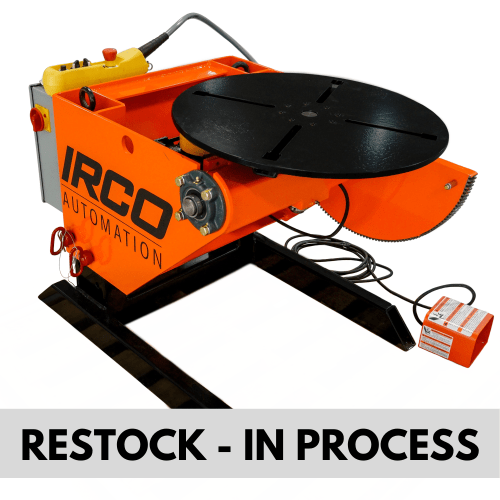

1.5K Restock in Process

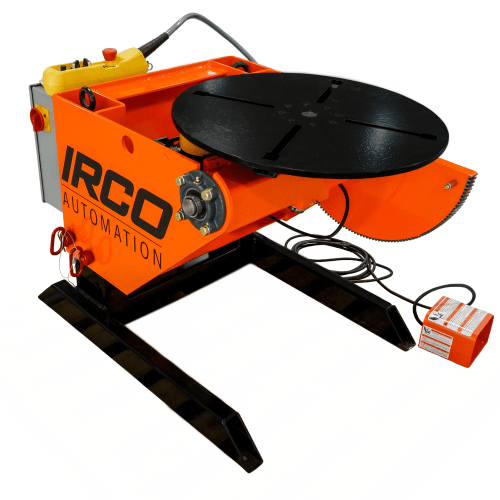

1500 LB TILT ROTATE POSITIONER: MANUAL ELEVATING

PTR-1.5-MS24RP-V1
Tilt Rotate Positioner with 1,500 lb capacity, Manual Elevation, Solid Spindle, 24" round painted table, with variable speed motor control, 110V, 15ft Pendant

Inventory Images (1)

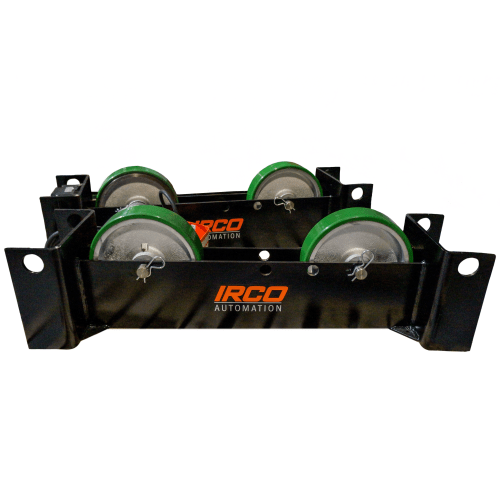

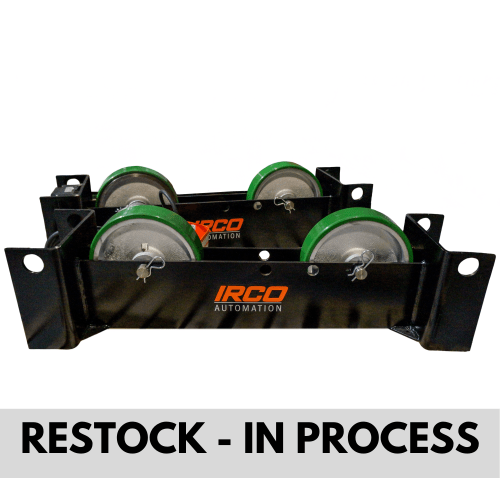

3000 LB POWER PIPE TURNING ROLL: 3.5"-48" DIAMETER RANGE

TRPP-3-F
Pipe Turning Roll (Power) with 3000 lb capacity, 3.5"-48" diameter range, Urethane wheels, fixed base, 110V

Inventory Images (1)

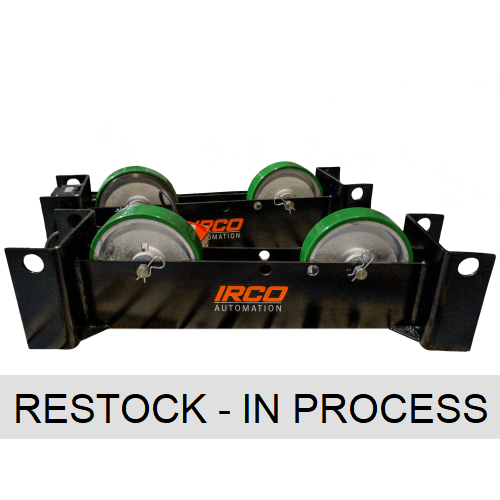

3000 LB IDLER PIPE TURNING ROLL: 3.5"-48" DIAMETER RANGE

TRPI-3-F
Pipe Turning Roll (Idler) with 3000 lb capacity, 3.5"-48" diameter range, Urethane wheels, fixed base

Inventory Images (2)

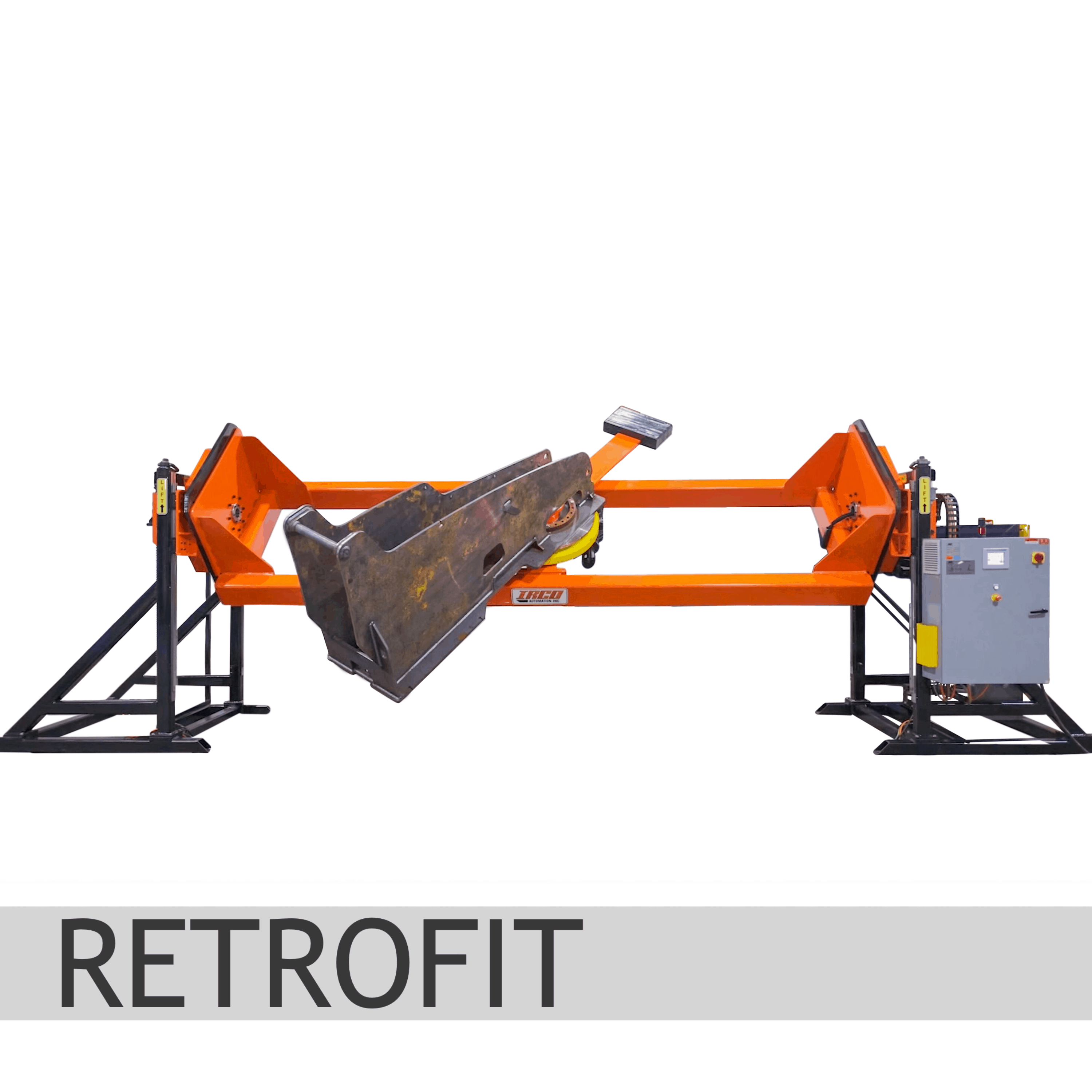

POWER ELEVATING HEAD & TAIL STOCK WITH SERVO CONTROLS– 12,000 LB CAPACITY

Custom designed head and tail stock with drop center integrated with 10,000 lb. rototable. System is PLC controlled with pre programmable motion. System is used, can be retrofitted.

P3X-12K

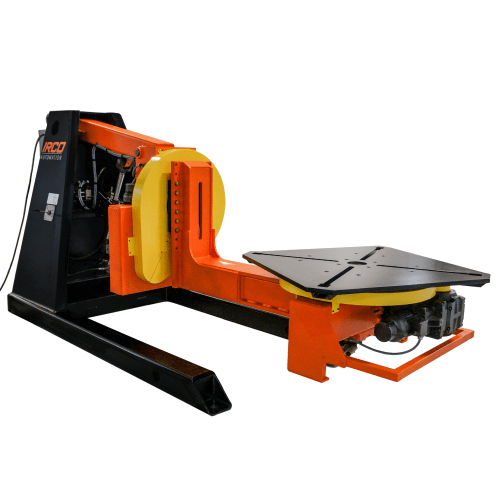

12000 LB 3-AXIS BEAM POSITIONER: WITH OPTIONAL ROTOTABLE

P3X-12-HR48P-V4
3-Axis Beam Positioner with 12,000 lb Load Capacity. Hollow spindle, with 48" rototable, Painted Table, Variable Speed Control, 460V

cbpw-0705-SM

COLUMN & BOOM PORTA-WELDER

CBPW-0705-SM
Column & Boom Porta-Welder with 7ft vertical travel, 5 ft horizontal travel, manual boom control in/out, power boom up/down, mobile travel cart, system integration optional

LOOKING FOR SOMETHING DIFFERENT?

With over 50 years experience, IRCO Automation designs and builds a variety of
weld positioning equipment - including Standard Product, Customized designs, and
Automated Solutions & Systems. To learn more, visit the pages listed below.
